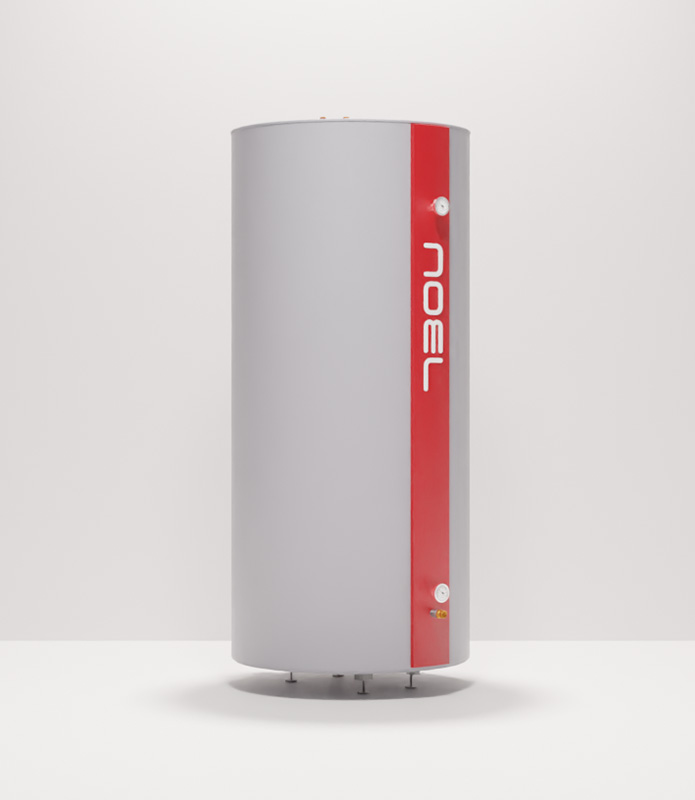

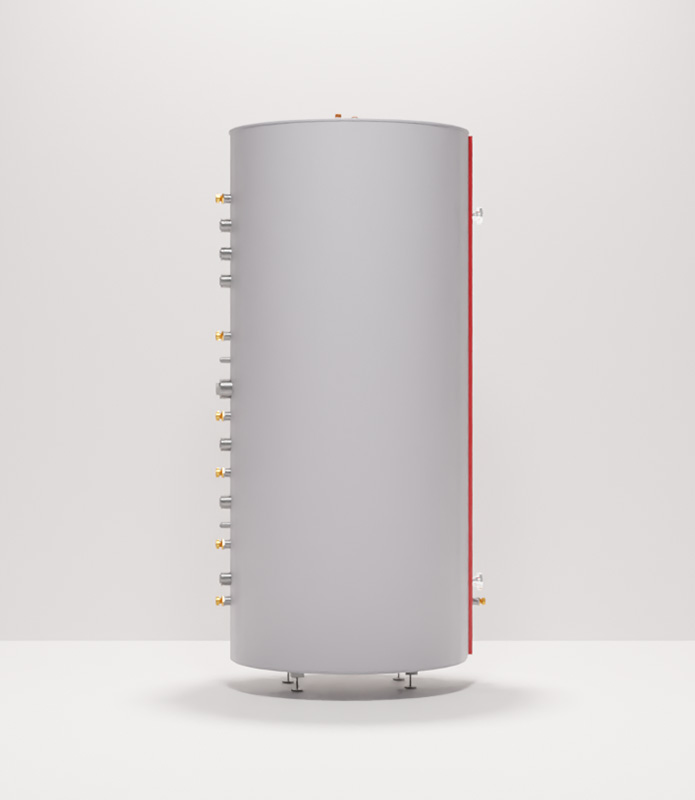

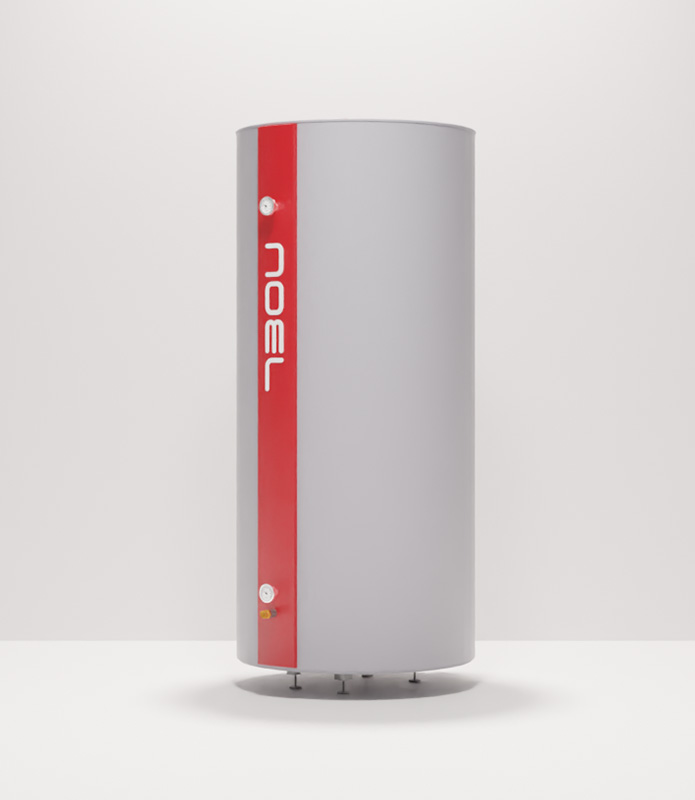

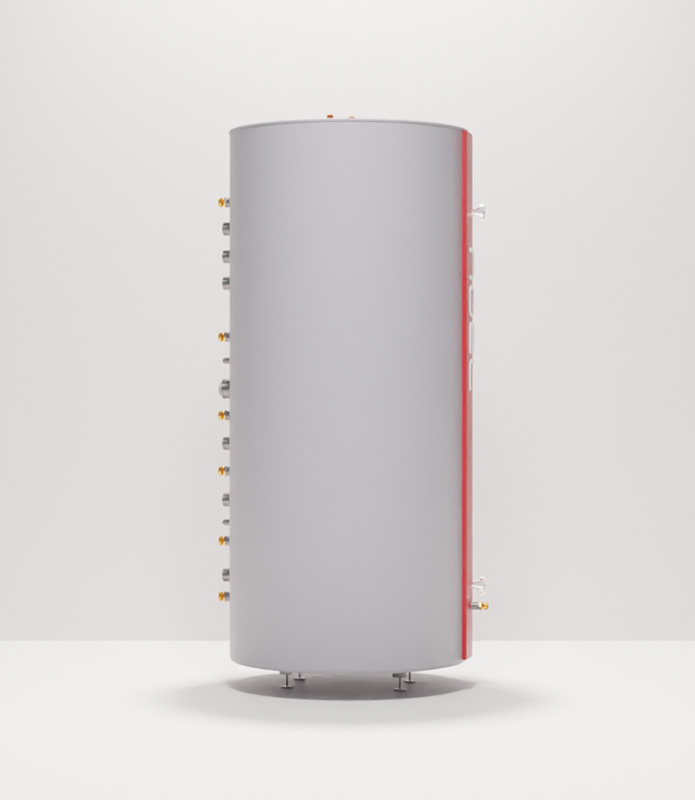

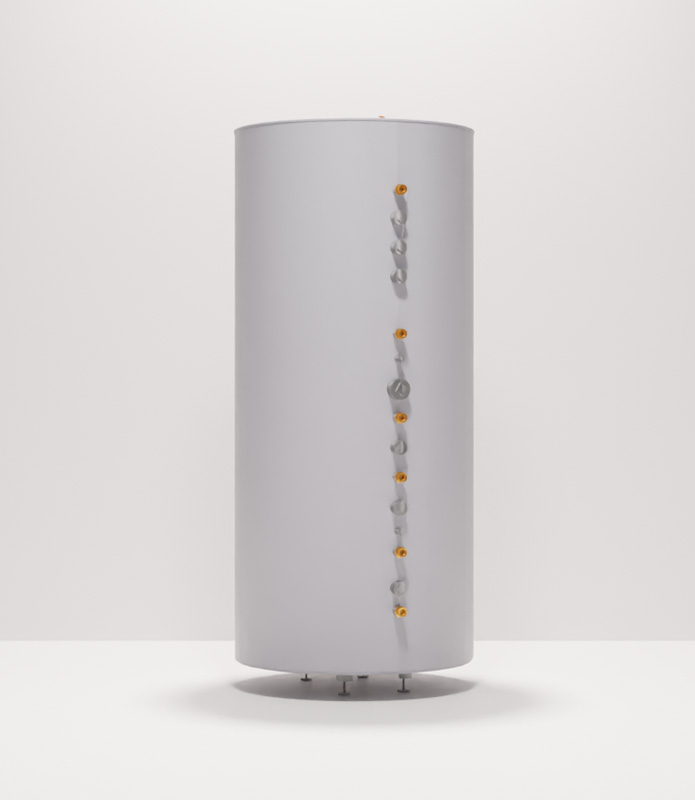

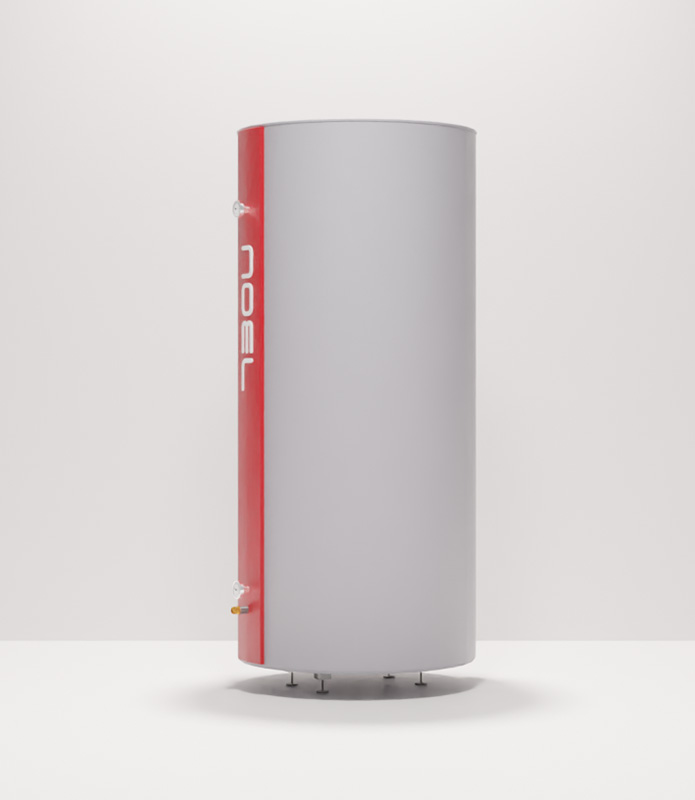

Hybrid Heat Storage Tank with Three Copper Coils

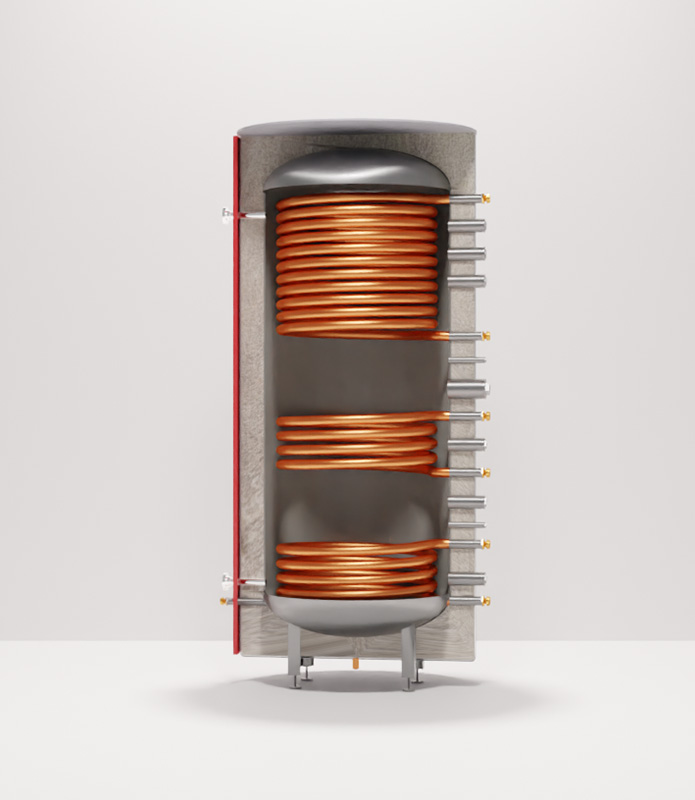

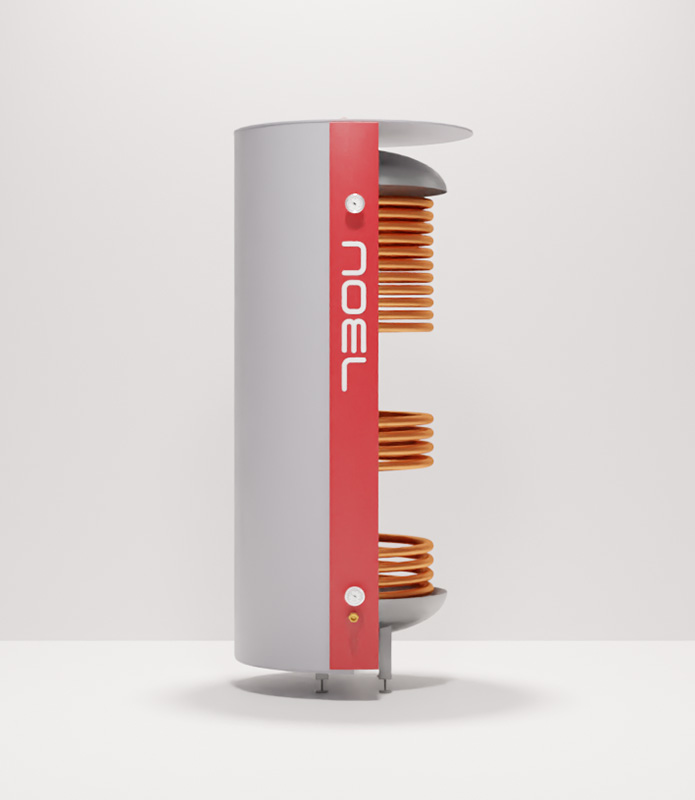

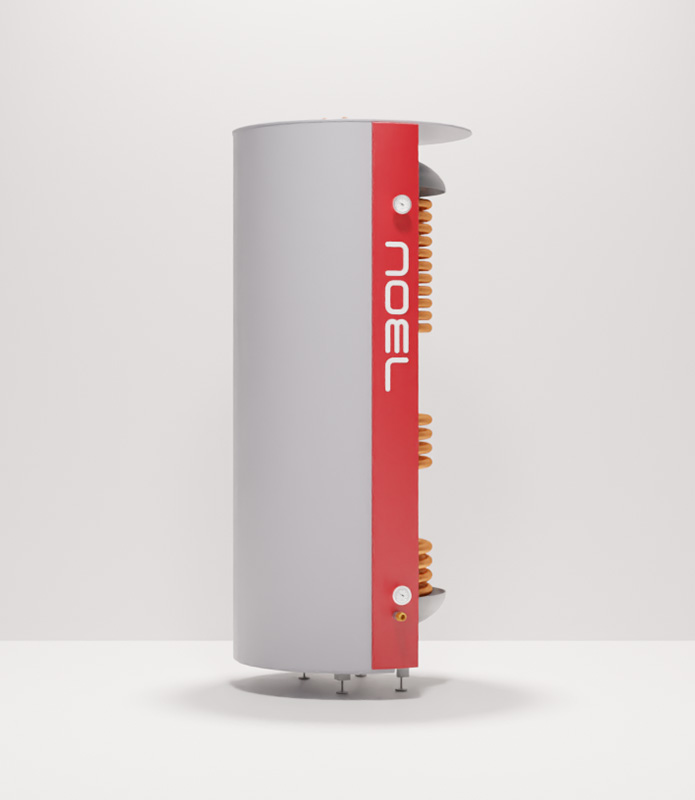

Idealne zastosowanie do łączenia różnych źródeł ciepła. Zastosowanie bufora ciepła Noel standardowo wyposażonego w trzy miedziane wężownice:
- Górna miedziana wężownica do przepływowego przygotowania ciepłej wody użytkowej,
- Druga miedziana wężownica do podłączenia np. z systemem solarnym,
- Trzecia miedziana wężownica do podłączenia np. z systemem solarnym, zasilaniem z sieci ciepłowniczej oraz urządzeniami do odzysku ciepła.
Pełna dowolność kombinacji źródeł ciepła i odbiorników ciepła pozwala zaprojektować oraz wykonać instalacje grzewcze w różnych kombinacjach technicznych, łącząc ze sobą układy otwarte z układami zamkniętymi. Takie rozwiązanie ułatwia pracę oraz skraca czas wykonania projektu samej kotłowni, zachowując komfort i bezpieczeństwo użytkowania instalacji grzewczych.
| Material: | S235JR, thickness 3 mm |
| Insulation: | Rock wool |
| Protective Jacket: | Eco leather |
| Tank Working Pressure: | 3 bar |
| Domestic Hot Water (DHW) Working Pressure: | 6 bar |
| Permissible Operating Temperature: | 95ºC |
| Heat Exchange Surface Area of DHW Coil: | from F= 2.8 m² to F= 3.4 m² |
| DHW Efficiency: | from 1400 l/h to 2400 l/h |
| Heat Exchange Surface Area of Middle Coil: | from F= 1.7 m² |
| Heat Exchange Surface Area of Bottom Coil: | from F= 1.7 m² |
| Tank Operation in System: | Open and Closed |
| Warranty: | 10 years |
Tanks for Advanced Installations
Examples of Installations Suitable for a Tank with Three Coils:
- Water jacket fireplace + solar collectors + gas installation
- Water jacket fireplace + heat pump + gas installation
Diagram of Noel Heat Storage Tanks with Copper Coils
The ability to connect multiple heat devices to power multiple heating and hot water systems simultaneously.
The buffer can collaborate simultaneously with:
- Water jacket fireplace,
- Solid fuel boiler,
- Oil boiler,
- Gas boiler, electric boiler,
- Heat pump,
- Solar collectors,
- Photovoltaics,
which can thereby maximize their efficiency and extend their lifespan.
The capacity of the heat buffer is intended for the accumulation of heat produced by various heat sources, and the accumulated thermal energy is transferred to the heating system (underfloor heating, radiators, wall heating).
When connected to a solar system, we simultaneously gain: hot water and central heating.
Instead of several devices, we have one device, working as:
- Buffer: a heat storage unit, accumulating heat from various heat sources,
- Heat exchanger: a flow-through water heater for domestic hot water,
- Coupling: the ability to connect multiple heat sources simultaneously to power multiple heating and hot water systems, as well as different heat receivers.
Continuous Flow Domestic Hot Water Heating in Noel Buffer Tank
- Unlimited amount of hot water, thanks to continuous flow heating technology
- The technology of continuous flow of domestic hot water prevents the growth of Legionella bacteria
- Real-time water heating
- No aging of water occurs
- Efficiency of no less than 24 liters per minute
- Guaranteed hot water as soon as the tank is heated to 50°C
- No need to remember to replace the cathode or anode
- Copper inhibits bacterial growth
- Water from the copper coil is ideal even for demanding users such as hospitals, nurseries, kindergartens, or schools.
Available Models
| Device | Heating Power | Hot Water Flow | Volume | Diameter | Height | Weight | Technical Datasheet |
|---|---|---|---|---|---|---|---|
| 700 / 3W / 40 | 20 - 30 kW | 40 L/min | 610 L | 800 mm | 2000 mm | 170 kg | |
| 900 / 3W / 40 | 30 - 50 kW | 40 L/min | 830 L | 900 mm | 2100 mm | 225 kg | |
| 900 / 3W / 40 SLIM | 30 - 50 kW | 40 L/min | 830 L | 820 mm | 2500 mm | 225 kg | |
| 1200 / 3W / 40 | + 50 kW | 40 L/min | 1120 L | 1000 mm | 2200 mm | 230 kg | |
| 1200 / 3W / 40 SLIM | + 50 kW | 40 L/min | 1120 L | 920 mm | 2600 mm | 245 kg | |
| 1500 / 3W / 40 | + 50 kW | 40 L/min | 1320 L | 1000 mm | 2700 mm | 260 kg |
